LASER Sensor

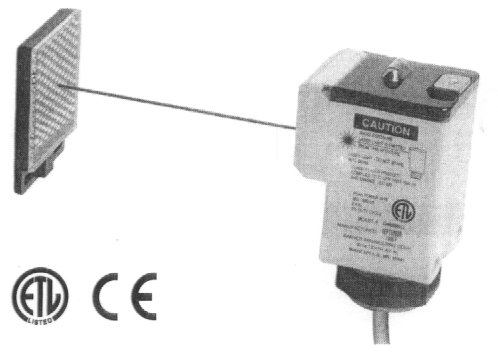

TimeTech's new LASER finish sensor.



Features

bulletHigh power and small effective beam
bulletClass II laser diode light source
bullet70m (225') range
bulletDesigned to withstand 1200psi washdown



Specifications

bullet10 to 30V dc, at less than 50mA
bulletLess than 2 millisecond output response time
bullet0.5 millisecond repeatability
bulletLight/dark operate select switch, and multi-turn sensitivity control on top of sensor, allows precise sensitivity setting.
bulletLED indicators, Power (green), Signal (red), Load (yellow)
bulletMolded thermoplastic polyester housing, o-ring sealed tranparent Lexan top cover, molded acrylic lenses, and stainless steel hardware
bulletNEMA 6P, IEC IP67 Environmental Rating
bulletClass II LASER produce. US Safety Standards 21 CFR 1040.10 and 1040.11
bullet-10 to +40 C operating Temperature
